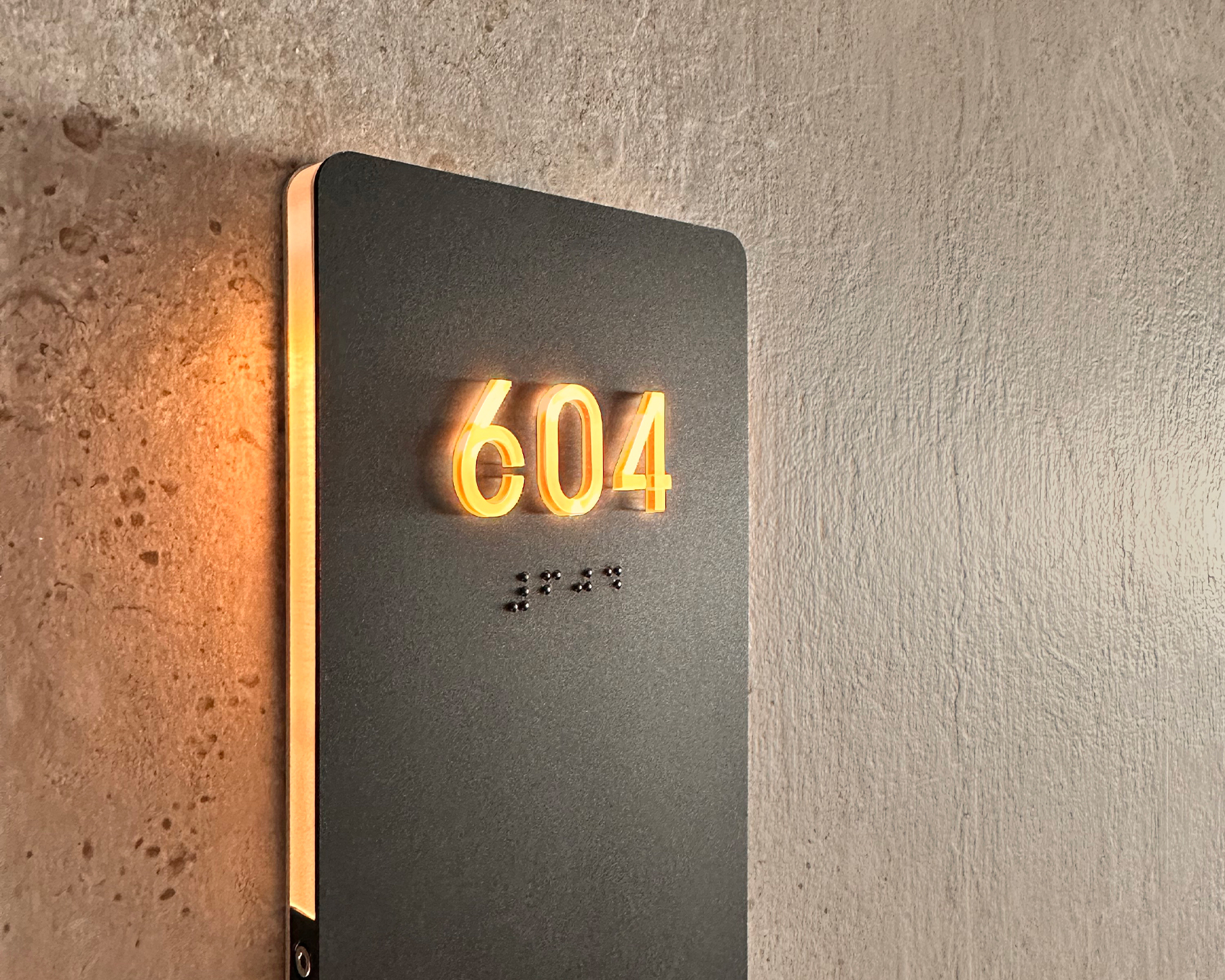

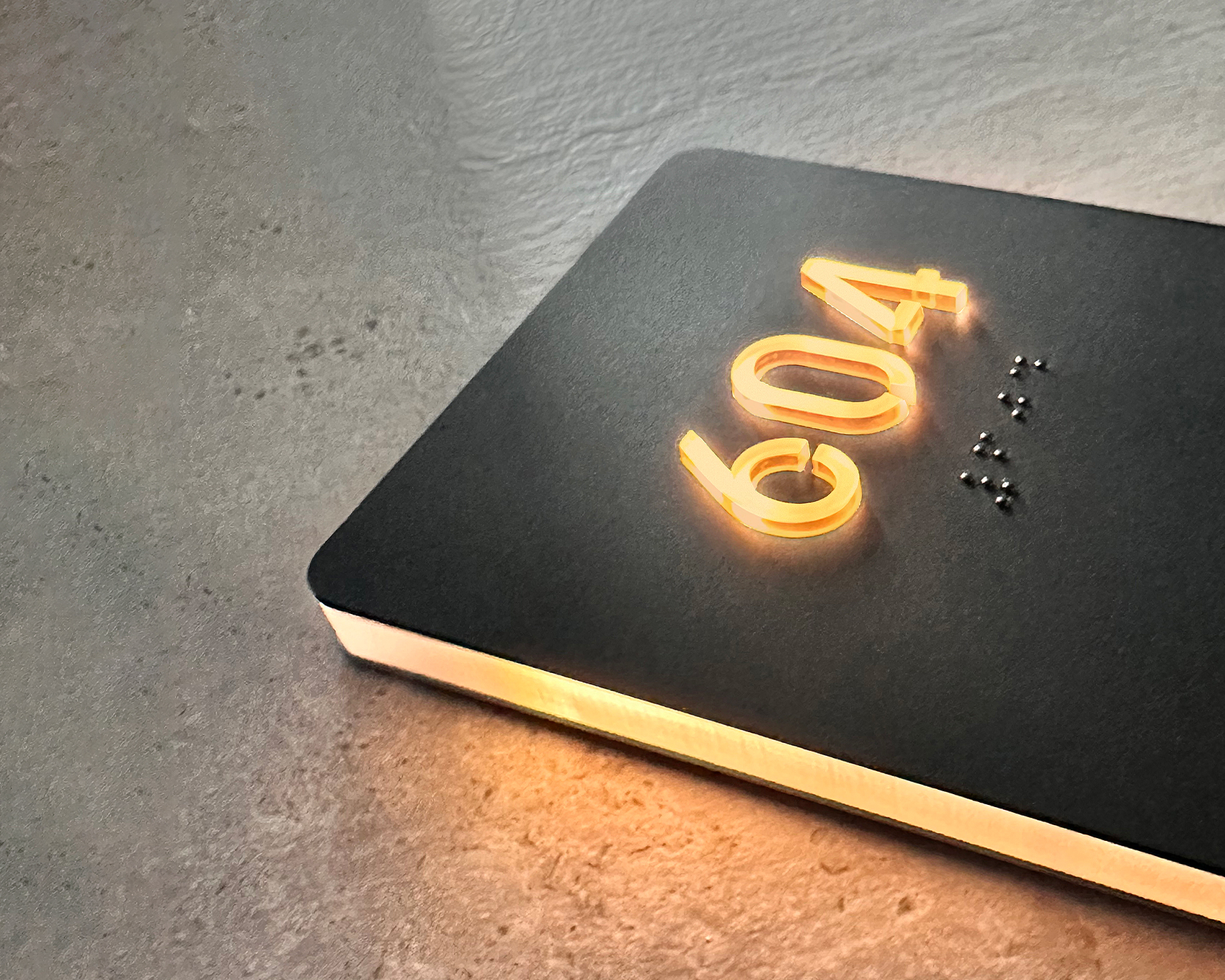

The black illuminated Room Number Apartment Signs with a stainless-steel braille are a modern system of illuminated LED address number signs finished in Black.
The Black Backlit address sign with braille are a more elongate size of 4″ x 10 inches in height. The LUX-4L panels feature a uniquely designed hinge system that concealed the countersink wall screws The front panel surface is finished in a 316 stainless steel available in a satin or brushed black finish. For contract projects the panels can be special ordered in a custom size as well as different metal surfaces are available including Bronze, Black or Brass. The Numbers Sign panel connects to a standard 12 – 16 Volt AC transformer, six Creed LED illuminate the numbers and the acrylic back panel.
The front panel accommodates up to 4 numbers and is available in four colors including Blue, White, Amber or Red LED. Suitable for residential and contract projects. The Illuminated Room Number Sign with Braille is designed by Luxello.

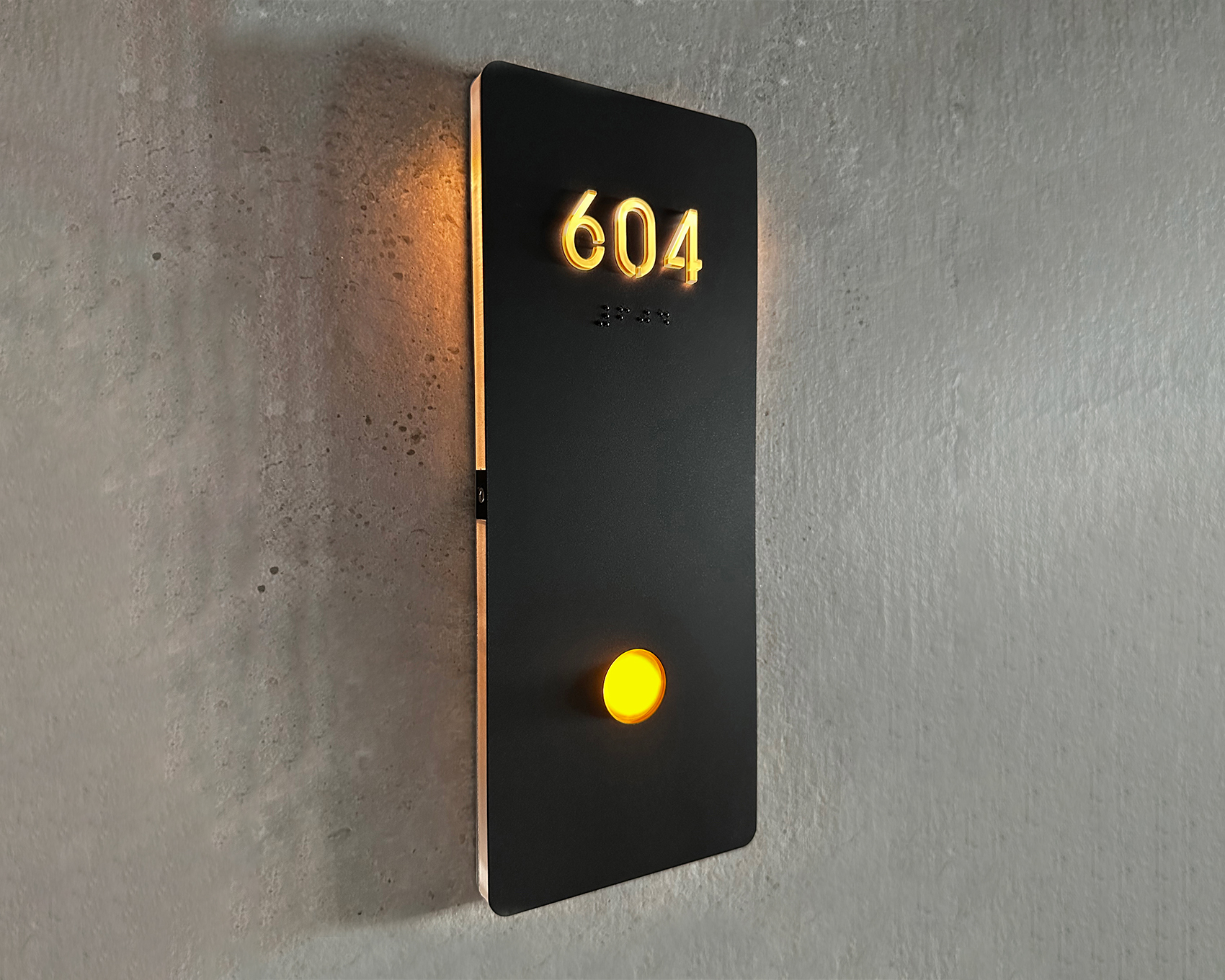

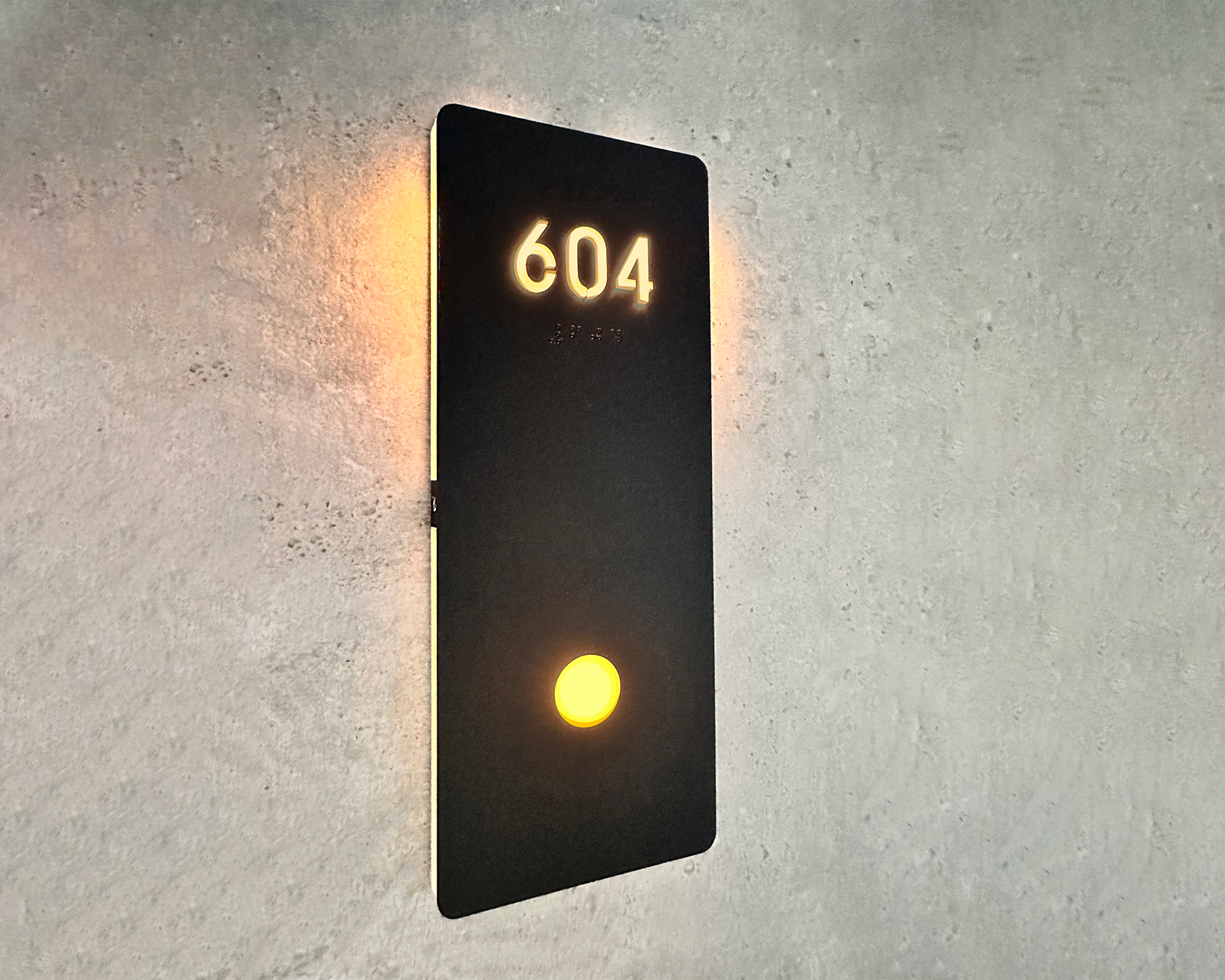

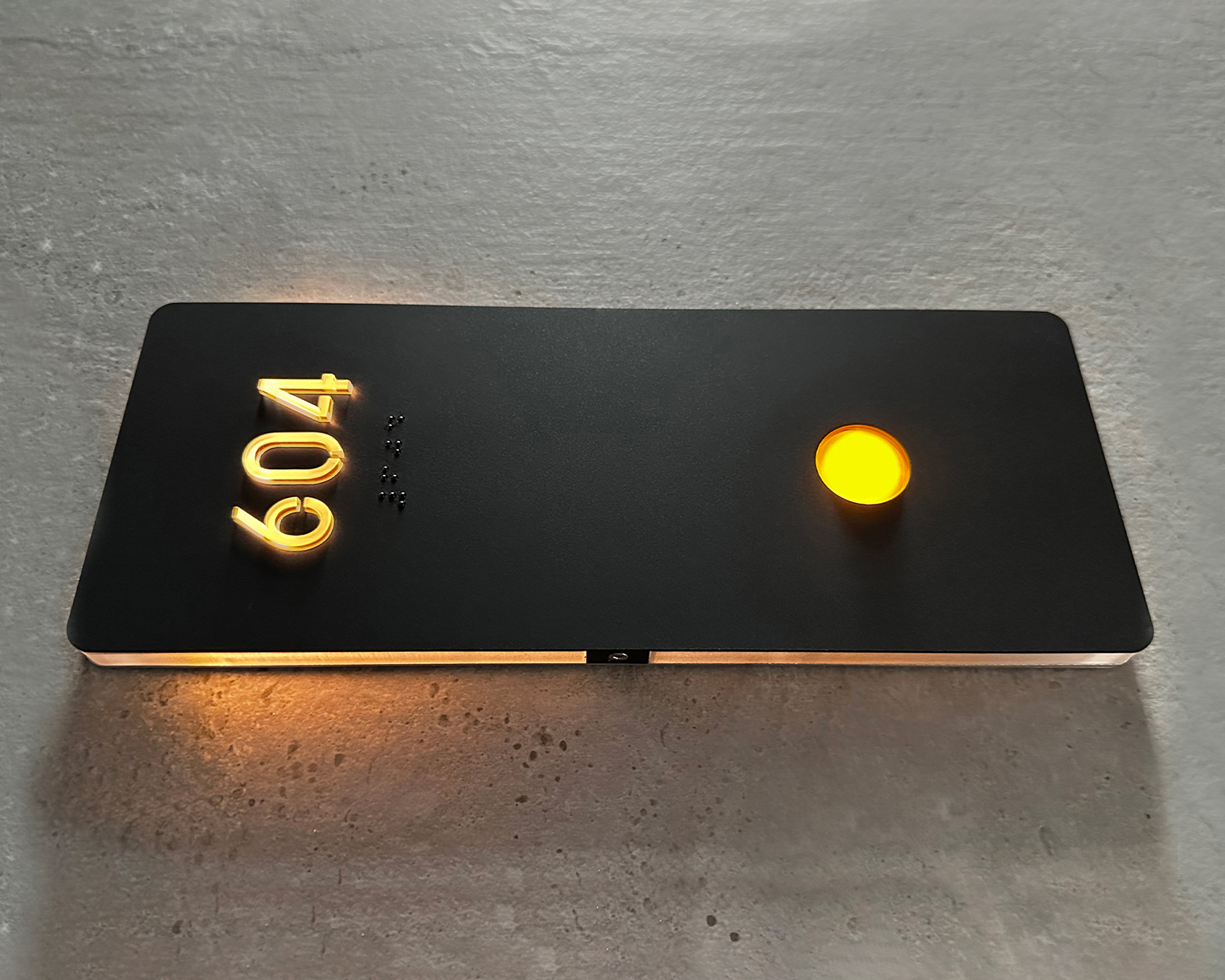

Satin Black Finish with Doorbell Button
SKU: LUX4L-DB-SA.
Brushed Black with Doorbell Button
SKU: LUX4L-DB-BR.
Black Illuminated Number Signs
with modern stainless Braille
Part: LUX4L-DB
W: 4″, H: 10″, D: 0.36″
316 Stainless Steel 1/8″
Power: 8 – 16 Volt AC
Creed LED Chip
Lead time 5- 6 weeks
On the product page you will find a drop down menu, select each digit you require and add it to the shopping
cart one number at the time. The quantity gets adjusted in the shopping cart only.
Luxello makes the backlit numbers and letters in six sizes including 3”, 5”, 8”, 10”, 16” and 24” inch. There are also 1 - 2 custom sizes that are available upon request. All the numbers can be ordered in the following metal colors including Brushed Silver, Black, Bronze, Brass and Brushed Red combined with any of the LED color options. You will find most of the colors and sizes listed from the overview page.
https://www.luxello.in/size/modern-backlit-numbers/The numbers require a minimum of 10 - 12 Volt AC or DC for optimum voltage. These are low voltage so you will require a transformer like a doorbell transformer or a 5 Watt LED Driver. A single power supply is enough to illuminated up to 6 numbers. The wires from each number all get connected to the same power supply they do not have any polarity. If you have a battery power pack that can output the required voltage requirements then you can use that as well. LED driver options
https://www.luxello.in/product/led-12v-power-supply/
