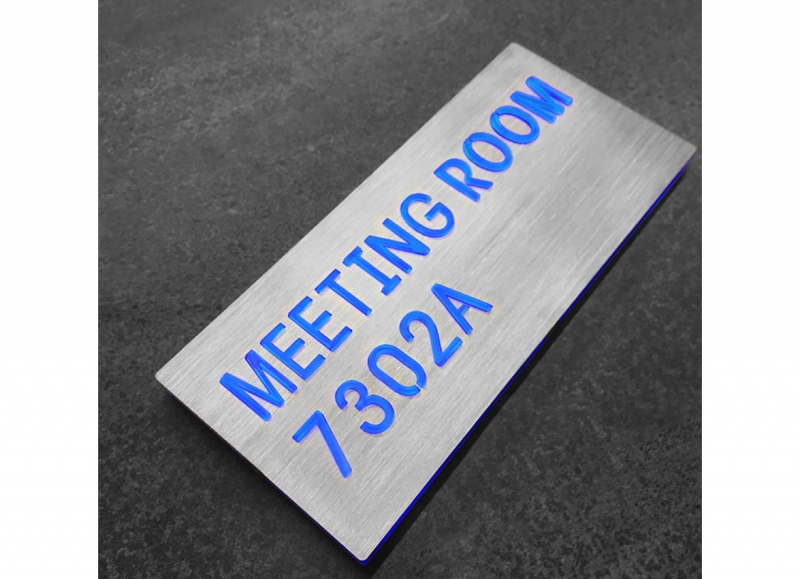

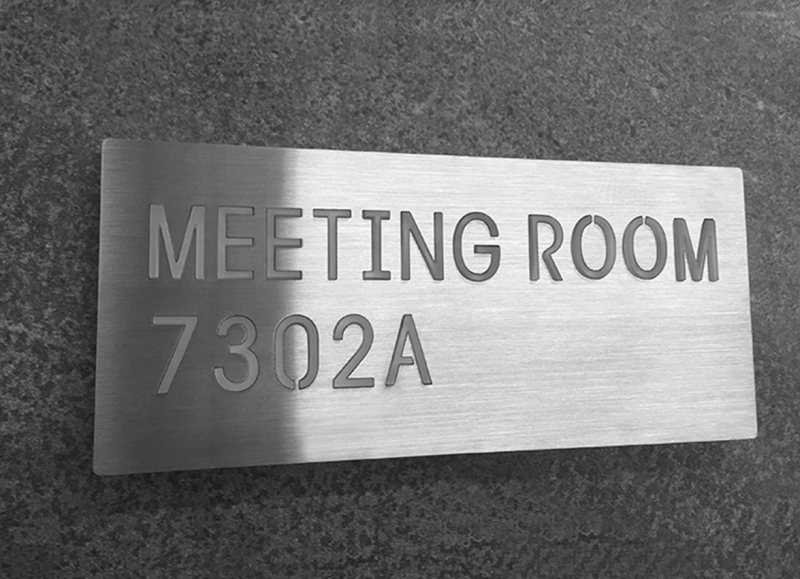

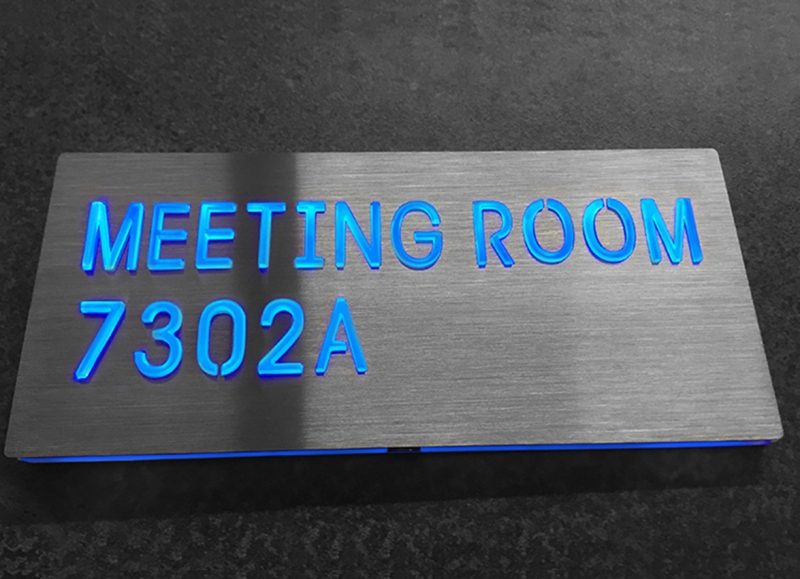

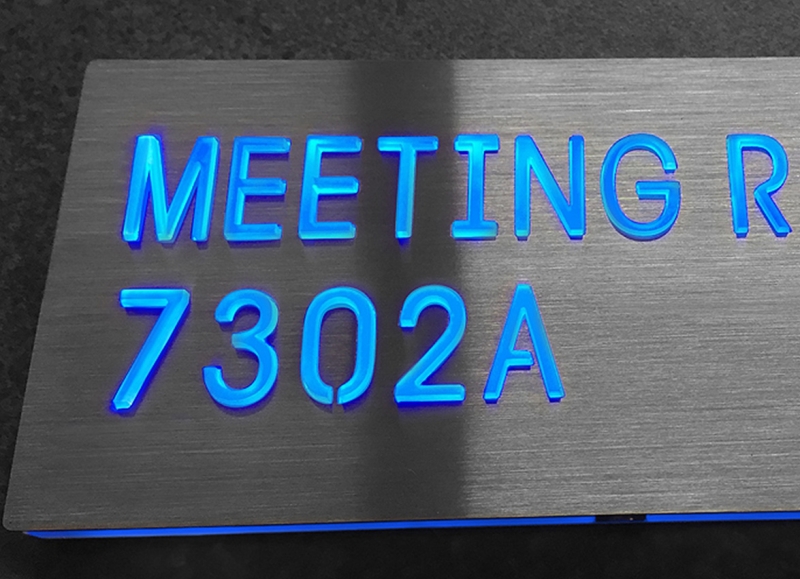

The LED Illuminated directional sign system is an extensions of the luxello room number panel system. The standalone product can be used as wayfinder signs in hallways, elevator or provide illuminated specific information.
The two standard directional signs come in two sizes 4″ x 10″ or 4.5″ x 16″ inches. both sizes are available in 4 backlit LED colors and with 3 various metal finishes including black, bronze or a brushed stainless steel. The P5 Lighted panel signs can accommodated up to two rows of characters and numbers.
The LED backlit door number signs feature a uniquely designed hinge system that conceals the countersink wall screws The front panel is finished in a brushed grey plated 316 stainless steel. The panel signs connects to a standard 12 – 16 Volt AC or DC power source.
For commercial projects the panels can be special ordered in various different metal finishes, custom sizes and options. The LED lighted directional signs can be ordered in the following LED colors including Blue, White, Amber, Green and Red. Designed by Luxello
How do you order the P5 stainless Panel Sign ?
Once the order has been placed a confirmation email will be send to you requesting the number or letters to be placed onto the panel. You can also custom order the panel in a bronze or nickel plated finish. An optional stainless steel braille can be added as well.
Size: 4" x W: 10"
2 x Rows of 12 Characters
Add On Option Braille
SKU: LUX-P5
Size: 4" x W: 10"
2 x Rows of 12 Characters
Add On Option Braille
SKU: LUX-P5L
Size: 4.5" x W: 16"
2 x Rows of 20 Characters
Add On Option Braille
SKU: LUX-P5-16
Size: 4.5" x 16"
2 x Rows of 20 Characters
Add On Option Braille
SKU: LUX-P5L-16
LED Directional Room Signage with Optional ADA Braille
Model: LUX-P5
H: 4″ x 10″ D: 0.36″
316 Stainless Steel 1/8″
Power: 8 – 16 Volt AC
Creed LED Chip
Lead time 4- 6 weeks
On the product page you will find a drop down menu, select each digit you require and add it to the shopping
cart one number at the time. The quantity gets adjusted in the shopping cart only.
Luxello makes the backlit numbers and letters in six sizes including 3”, 5”, 8”, 10”, 16” and 24” inch. There are also 1 - 2 custom sizes that are available upon request. All the numbers can be ordered in the following metal colors including Brushed Silver, Black, Bronze, Brass and Brushed Red combined with any of the LED color options. You will find most of the colors and sizes listed from the overview page.
https://www.luxello.in/size/modern-backlit-numbers/The numbers require a minimum of 10 - 12 Volt AC or DC for optimum voltage. These are low voltage so you will require a transformer like a doorbell transformer or a 5 Watt LED Driver. A single power supply is enough to illuminated up to 6 numbers. The wires from each number all get connected to the same power supply they do not have any polarity. If you have a battery power pack that can output the required voltage requirements then you can use that as well. LED driver options
https://www.luxello.in/product/led-12v-power-supply/
